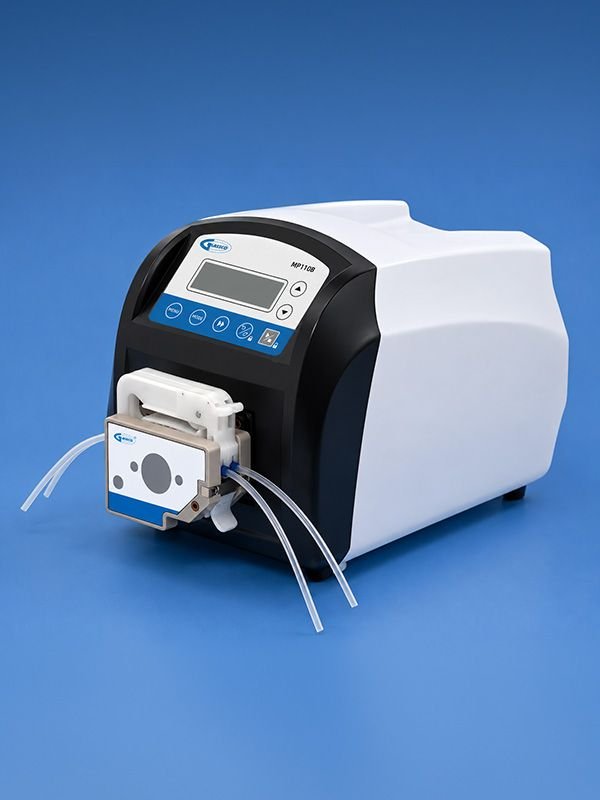

Speed Variable Peristaltic Pump

Speed Variable Peristaltic Pump

₹10,000.00

  • LCD display with simple parameter settings and intuitive status display.
  • Remote control capabilities through built-in software, enabling start/stop functions, speed regulation, timed operation, and monitoring features such as shutdown alarms and pump tube replacement reminders (optional).
  • Delay start and delay stop functions.
  • Control options include start/stop, reversible direction, full speed, speed adjustment, and state memory (power-down memory).
  • External analog speed regulation, along with external control signals for start/stop, forward/reverse operation, and physical isolation of the external control signal.
  • Supports wide voltage input rate (5–24V) for external control signals.
  • The external speed control signal type (voltage or current) can be switched via the control panel.
  • RS485 communication** interface with MODBUS protocol support, allowing for easy integration with other equipment and communication parameter settings.
  • The circuit board is coated with conformal material, providing dust and moisture protection.
  • Super anti-interference features and a wide input voltage rate make it suitable for complex power environments.
  • ABS engineering plastic housing** with a creative streamlined design that is both aesthetically pleasing and functional.
  • Time dispensing function**, enabling repeated, timed, and quantitative dispensing.
  • Provides high cost-performance by meeting basic transmission requirements with speed adjustment and timed dispensing capabilities.
Item code Flow Rate Speed Rate Drive Weight Power Consumption Pack of
QtyEnquiry
515.303.01 0.00011 750 ml/min 0.1 ~ 150 RPM 3.6 kg <30W 1
515.303.02 0.005 1750 ml/min 0.1 ~ 350 RPM 3.9 kg <40W 1
515.303.03 0.005 3000 ml/min 0.1 ~ 600 RPM 3.9 kg <50W 1
Speed Resolution0.1 RPM (speed ≤ 100 RPM) / 1 RPM (speed > 100 RPM)
Speed Accuracy(≤ ±0.5%)
Duration0.1 ~ 999 S/Min/H/D
Dispensing Interval Time0.1 ~ 999 S/Min/H/D
Dispensing Time1 ~ 999, “0” = Infinite loops
External ControlExternal control input level: 5V, 12V (Standard), 24V (Optional),
External control analog: 0-5V (Standard), 0-10V, 4-20mA (Optional)
Working EnvironmentTemperature 0 ~ 40°C, relative humidity < 80%
IP GradeIP31
Dimension (L×W×H)284 mm × 180 mm × 197 mm

Ordering Information:

Item CodePump HeadChannelRollersCompatible Tubing SizeFlow Rate per Channel (mL/min)
515.303.01PH15T1, 2 or 43, 4 or 613#, 14#, 19#, 16#, 25#, 17#, 18#0.005 ~ 641
PH2514114#, 116#, 15#, 24#, 35#, 36#0.024 ~ 750
515.303.02PH15T1, 2 or 43, 4 or 613#, 14#, 19#, 16#, 25#, 17#, 18#0.005 ~ 1495
PH2514114#, 116#, 15#, 24#, 35#, 36#0.024 ~ 1750
515.303.03PH15T1, 2 or 43, 4 or 613#, 14#, 19#, 16#, 25#, 17#, 18#0.005 ~ 2562
PH2514114#, 116#, 15#, 24#, 35#, 36#0.024 ~ 3000

Note: Refer the table to understand maximum flow rate against each tubing size and pump head.
