In stock


Model No.:1220.DNEU.01, Capacity (ml):100*, W:200, Dimension: 167x240x182 |
Model No.:1220.DNEU.02, Capacity (ml):250*, W:200, Dimension: 167x240x182 |
Model No.:1220.DNEU.03, Capacity (ml):500*, W:250, Dimension: 217x287x203 |
Model No.:1220.DNEU.04, Capacity (ml):1000*, W:350, Dimension: 217x287x203 |
Model No.:1220.DNEU.05, Capacity (ml):2000*, W:500, Dimension: 309x390x262 |
Model No.:1220.DNEU.06, Capacity (ml):3000*, W:500, Dimension: 309x390x262 |
Model No.:1220.DNEU.08, Capacity (ml):4000*, W:500, Dimension: 309x390x262 |
Model No.:1220.DNEU.09, Capacity (ml):5000*, W:650, Dimension: 309x390x262 |
Model No.:1220.DNEU.10, Capacity (ml):6000, W:650, Dimension: |
Model No.:1220.DNEU.11, Capacity (ml):10000, W:1250, Dimension: |
Model No.:1220.DNEU.12, Capacity (ml):20000, W:1850, Dimension:

Model No. Capacity (ml) W Dimension
Qty Enquiry
1220.DNEU.01100*200 167x240x182
1220.DNEU.02250*200 167x240x182
1220.DNEU.03500*250 217x287x203
1220.DNEU.041000*350 217x287x203
1220.DNEU.052000*500 309x390x262
1220.DNEU.063000*500 309x390x262
1220.DNEU.085000*650 309x390x262

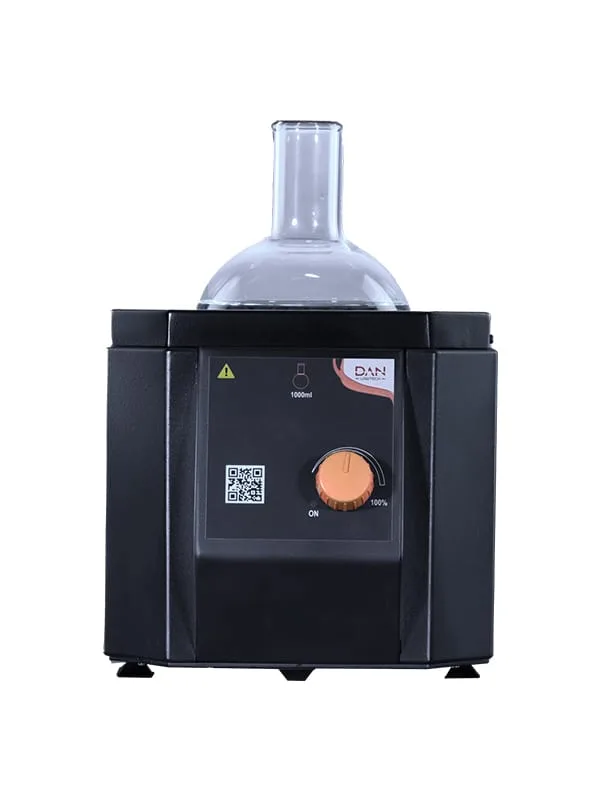

Heating Mantle  (Black DiamondTM):

  • Designed for advanced Laboratory usage
  • SS & Aluminium Construction
  • For Round Bottomed Flasks as per DIN – 12347
  • Glass fibre yarn knitted mantle provides uniform heating to flask
  • Predictable electronic power regulator
  • Provision to attach accessories
  • Innovative spill collect system enables collection of spillage in case of breakage of flasks
  • Fewer parts give longer life
  • Easy to use and maintain

Technical Specification:

Heating Mantle Body : Metallic, SS & Aluminium construction
Heating Mantle Material : Glass Fibre Yarn
Mantle Capacity : To hold standard Round Bottom Flasks upto 20000ml (as per DIN 12347)
Temperature Range : ~400°C
Control Accuracy : 10%
Heating Control : Variable
: 168x240x182 (WxDxH)
Permissible Ambient Temperature : 5-40° C
Permissible relative moisture : 80%
IP Class : 10

Optional Accessory:

Cat. No. Accessories
850.800.01 SS Rod (400mm, Ø 12mm)
850.800.03 Moulded PT 100 Sensor probe Bosshead
