In stock


Model No.:1223.DNEU.01, Capacity (mm):100ml, W:220, Dimension: 167x240x182 |
Model No.:1223.DNEU.02, Capacity (mm):250ml, W:220, Dimension: 167x240x182 |
Model No.:1223.DNEU.03, Capacity (mm):500ml, W:270, Dimension: 217x287x203 |
Model No.:1223.DNEU.04, Capacity (mm):1000ml, W:370, Dimension: 217x287x203 |
Model No.:1223.DNEU.05, Capacity (mm):2000ml, W:520, Dimension: 309x390x262 |
Model No.:1223.DNEU.06, Capacity (mm):3000ml, W:520, Dimension: 309x390x262 |
Model No.:1223.DNEU.08, Capacity (mm):5000ml, W:670, Dimension: 309x390x262 |

Model No. Capacity (mm) W Dimension
Qty Enquiry
1223.DNEU.01100ml220 167x240x182
1223.DNEU.02250ml220 167x240x182
1223.DNEU.03500ml270 217x287x203
1223.DNEU.041000ml370 217x287x203
1223.DNEU.052000ml520 309x390x262
1223.DNEU.063000ml520 309x390x262
1223.DNEU.085000ml670 309x390x262

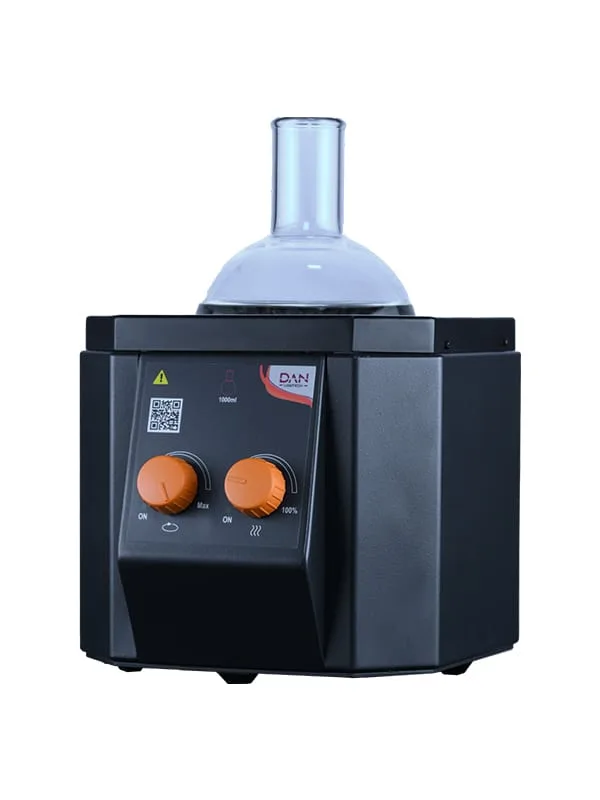

Heating Mantle  (Black DiamondTM):

  • Designed for advanced Laboratory usage
  • SS & Aluminium Construction
  • For Round Bottomed Flasks as per DIN – 12347
  • Glass fibre yarn knitted mantle provides uniform heating to flasks
  • Predictable electronic power regulator
  • Knob for stir speed control upto 800 RPM
  • Innovative spill collect system enables collection of spillage in case of breakage of flasks
  • Fewer parts give longer life
  • Easy to use and maintain
  • Provision to attach accessories

Technical Specification:

Heating Mantle Body : Made of SS & Aluminium
Heating Mantle Material : Glass Fibre Yarn
Mantle Capacity : To hold standard Round Bottom Flasks upto 5000ml
Temperature Range : Approx. 400°C
Control Accuracy : 10%
Heating Control : Digital
: 168x240x182 (WxDxH)
Permissible Ambient Temperature : 5-40° C
Permissible relative moisture : 80%
IP Class : 10

Optional Accessory:

Cat. No. Accessories
850.800.01 SS Rod (400mm, Ø 12mm)
850.800.03 Moulded PT 100 Sensor probe Bosshead
