Order Now Advance Range Of Heating Mantle

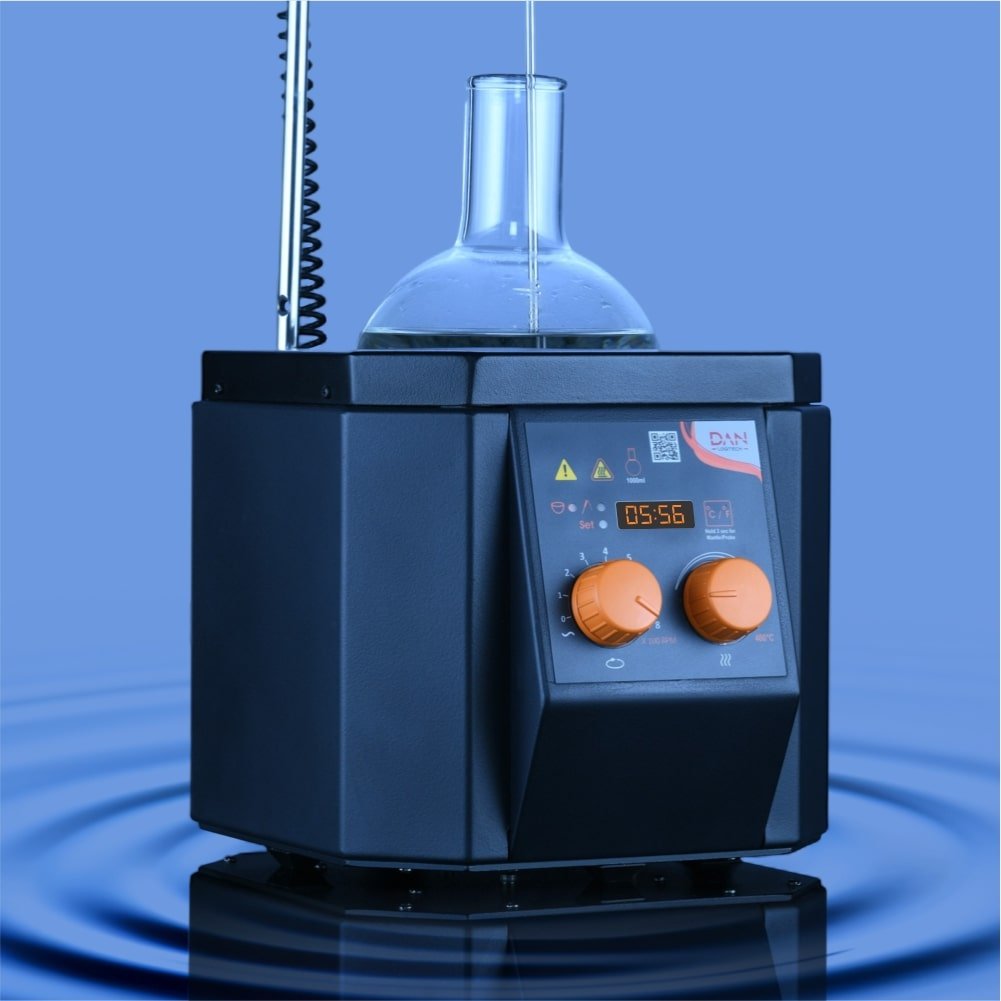

HEATING MANTLE WITH STIRRER DIGITAL (BlackDiamond™)
₹30,000.00 – ₹100,000.00
- Designed for advanced Laboratory usage
- Control the temperature of subject in flask using probe
- PU Coated Aluminium & Stainless Steel construction
- Temperature control with digital display built in magnetic stirring
- Celsius/Fahrenheit selection
- Mantle/Probe selection
- For Round Bottomed Flasks as per DIN – 12347
- Glass fibre yarn knitted mantle provides uniform heating to flasks
- Innovative spill collect system enables collection of spillage in case of breakage of flasks
- Electronic stir speed control
- Glass fibre Insulation saves power wastage
- Auto Power ‘ON’ possible
| Model No. | Capacity (ml) | W | Dimension |
| ||
|---|---|---|---|---|---|---|
| 1221.DNEU.01 | 100ml | 220 | 167x240x182 | |||
| 1221.DNEU.02 | 250ml | 220 | 167x240x182 | |||
| 1221.DNEU.03 | 500ml | 270 | 217x287x203 | |||
| 1221.DNEU.04 | 1000ml | 370 | 217x287x203 | |||
| 1221.DNEU.05 | 2000ml | 520 | 309x390x262 | |||
| 1221.DNEU.06 | 3000ml | 520 | 309x390x262 | |||
| 1221.DNEU.08 | 5000ml | 670 | 309x390x262 |
Technical Specification:
| Heating Mantle Body | : Metallic SS & Aluminium |
| Heating Mantle Material | : Glass Fibre Yarn |
| Mantle Capacity | : To hold standard Round Bottom Flasks upto 5000ml |
| Heating Control | : Microprocessor based PID |
| Stir Control | : Microprocessor based |
| Temperature Range | : ~400°C |
| Control Accuracy | : 10% |
| Weight | : 2.5Kg |
| Variable Speed Range | : ~800 RPM |
| Permissible Ambient Temperature | : 5- 40 °C |
| Permissible relative moisture | : 80% |
| IP Class | : 10 |
| Also Known as | : 1221.EU.01, 1221.EU.02, 1221.EU.03 , 1221.EU.04, 1221.EU.05, 1221.EU.06, 1221.EU.08 |
