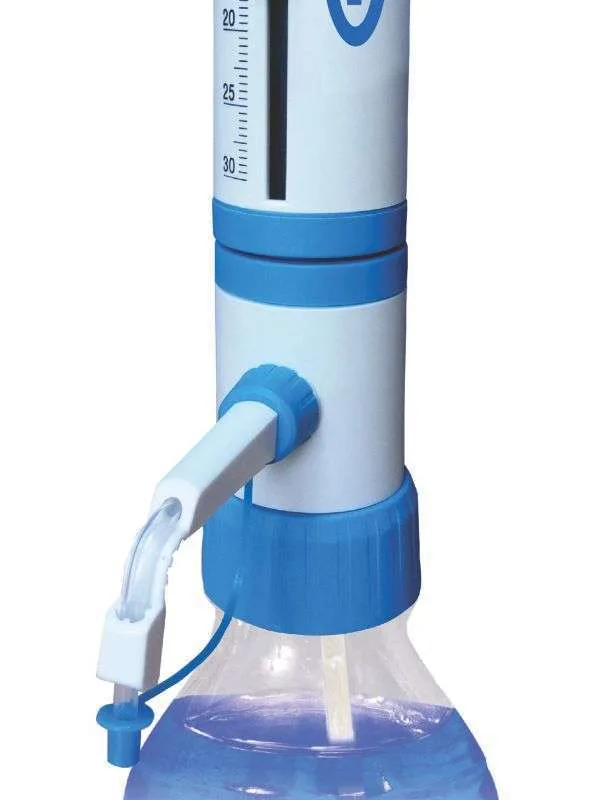

Order Now Bottle Top Dispenser Without Re-Circulation Valve

Availability:

In stock

12,500.0023,500.00


Model No.:500.555.01, Vol. Range:0.25 to 2.5ml, Increment:0.05ml, Pcs/Pack:1 |
Model No.:500.555.02, Vol. Range:0.5 to 5ml, Increment:0.1ml, Pcs/Pack:1 |
Model No.:500.555.03, Vol. Range:1 to 10ml, Increment:0.2ml, Pcs/Pack:1 |
Model No.:500.555.04, Vol. Range:2.5 to 30ml, Increment:0.5ml, Pcs/Pack:1 |
Model No.:500.555.05, Vol. Range:5 to 60ml, Increment:1.0ml, Pcs/Pack:1 |
Model No.:500.555.06, Vol. Range:10 to 100ml, Increment:2.0ml, Pcs/Pack:1

Model No. Vol. Range Increment Pcs/Pack Price
Qty Enquiry
500.555.010.25 to 2.5ml0.05ml1 12500
500.555.020.5 to 5ml0.1ml1 12500
500.555.031 to 10ml0.2ml1 12500
500.555.042.5 to 30ml0.5ml1 19500
500.555.055 to 60ml1.0ml1 19500
500.555.0610 to 100ml2.0ml1 23500


SPECIFICATIONS:

  • Fully autoclavable at 121°C, 15psi. for 10-15 mins.
  • “CE” mark awarded.
  • Smooth, effortless plunger movement and bubble free dispensing.
  • 10% Glass Filled PP provides excellent aesthetic, stability and toughness tothe product.
  • Volume adjustment to be done by turning the knob only 180Deg. clockwise or anticlockwise for locking and unlocking.
  • 360 Degree rotation of the instrument on the reagent bottle, without moving the bottle.
  • Easy to dis-assemble for cleaning and servicing.
  • Specially designed PTFE Piston ensures wiper-like smooth, effortless movement and high accuracy.
  • Glass Barrel is protected by a polypropylene sleeve. It also ensures no glass splitting in case of any accidental breakage.
  • Adjustable delivery nozzle to facilitate dispensing ease in all demanding laboratory conditions.
  • Nozzle cap prevents any unwanted drop on the work space and avoids contact with hazardous chemicals.
  • Adaptors to fit most of the laboratory reagent bottles are provided in the following sizes : 28,30,32,36,40 & 45 mm.
  • Specially designed, springless, PTFE valve manifold ensures excellent chemical compatibility and leak proof valve functioning.
  • Calibration as per ISO 17025 and ISO 8655 standards.




Specifications & Ordering Information

ISO 8655 Specifications Glassco Specifications
Accuracy CV Accuracy CV Price/Piece
Model No. Vol. Range Increment ±% ±ml ±% ±ml ±% ±ml ±% ±ml
500.555.01 0.25-2.5ml 0.05ml 0.6 0.015 0.2 0.005 0.6 0.015 0.2 0.005 11200
500.555.02 0.5-5ml 0.1ml 0.6 0.030 0.2 0.010 0.5 0.025 0.1 0.005 11200
500.555.03 1-10ml 0.2ml 0.6 0.060 0.2 0.020 0.5 0.050 0.1 0.010 11200
500.555.04 2.5-30ml 0.5ml 0.6 0.180 0.2 0.060 0.5 0.150 0.1 0.030 16500
500.555.05 5-60ml 1.0ml 0.6 0.360 0.2 0.120 0.5 0.300 0.1 0.060 16500
500.555.06 10-100ml 2.0ml 0.6 0.600 0.2 0.200 0.5 0.500 0.1 0.100 19700
