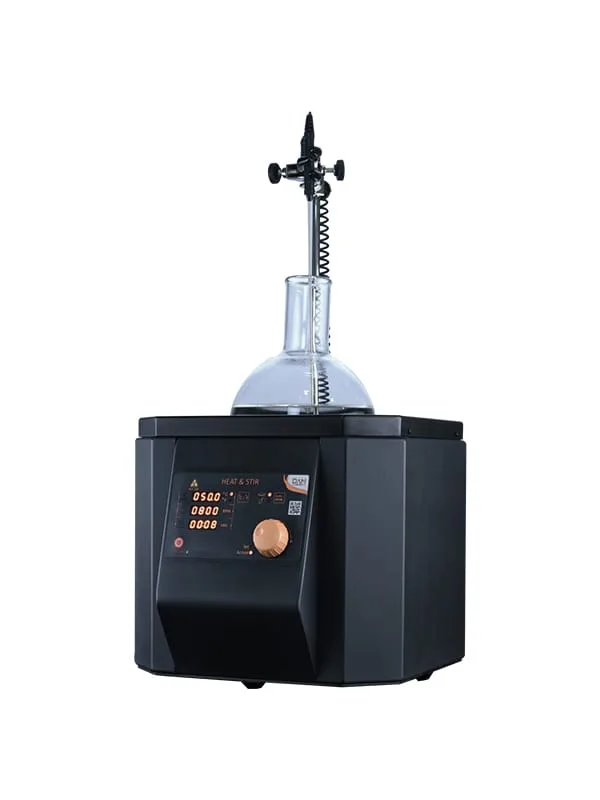

ADVANCED HEATING MANTLE WITH STIRRER BlackDiamond

ADVANCED HEATING MANTLE WITH STIRRER

ADVANCED HEATING MANTLE WITH STIRRER (Black DiamondTM Pro):

  • PU Coated Aluminium & Stainless Steel construction
  • Setable temperature trigger to sound alarm
  • Infinite stirring/ time provided also
  • Designed for advanced Laboratory usage
  • SS & Aluminium Construction
  • For Round Bottomed Flasks as per DIN – 12347
  • Single shuffle knob to set temperature, stir speed & time of activity
  • Independent keys for C/F selection & mantle/probe selection
  • Accurately Control liquid temp. with included PT 100 sensor probe
  • Glass fibre yarn knitted mantle provides uniform heating to flasks
  • Innovative spill collect system enables collection of spillage in cares of breakage of flasks
  • Probe based prescribed control of liquid
  • Auto Power ‘ON’
  • Rugged SP motor

Call Us At +91-9169 014 014 To Get The Best Price

Price
QtyEnquiry

Technical Specification:

Operating voltage: 230VAC/50Hz
Display type: LED segment
Temperature range: ~400 °C
Temperature step size: 1°C
Temperature resolution: ±1°C
Stir range: 50 to 800RPM
Stir step size: 50RPM
Weight: 3.2 Kgs
Timer range: 00:01 to 99:59
Timer step size: 00:01
External probe connection: DIN Port
IP Class: 10

Included Accessory:

Cat. No.Accessories
1500.150.01Magnetic Stirring bar 20mmx8mm (For 100-1000ml)
1500.150.02Magnetic Stirring bar 25mmx9mm (For 2000-5000ml)



Cat. No.Accessories
850.800.01SS Rod (542mm, Ø 9mm)
850.800.03Moulded PT 100 Sensor probe
850.800.04Bosshead
