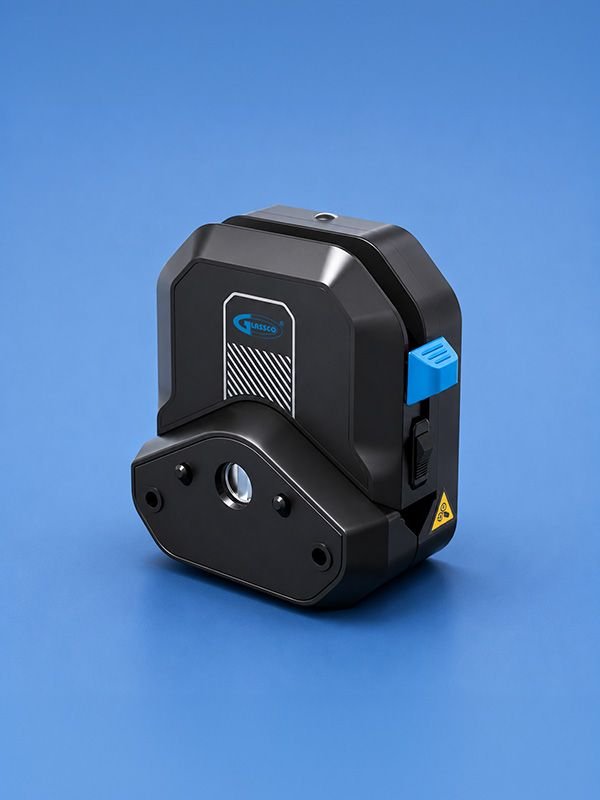

Pump Head (Stainless Steel, 3/6 Rollers, 1 Ch)

10,000.00


Item Code Pack Of
QtyEnquiry
515.305.01 1
Flow Rate≤ 2400 mL/min
Channel1
Roller3/6 rollers
Speed Range0.1 ~ 100 RPM/min
Tubing MethodFixation of pump head tube clamp
Pressure Tube ClearanceAutomatic/manual adjustment
Dimension95.7 × 108.7 × 63.1 mm
Working EnvironmentTemperature 0 ~ 40°C, relative humidity < 80%
Bear Liquid TemperatureWithin 200°C
Corrosion ResistanceResistant to most acid, alkali, salt liquids and organic solvents.
Roller Material304 Stainless Steel
