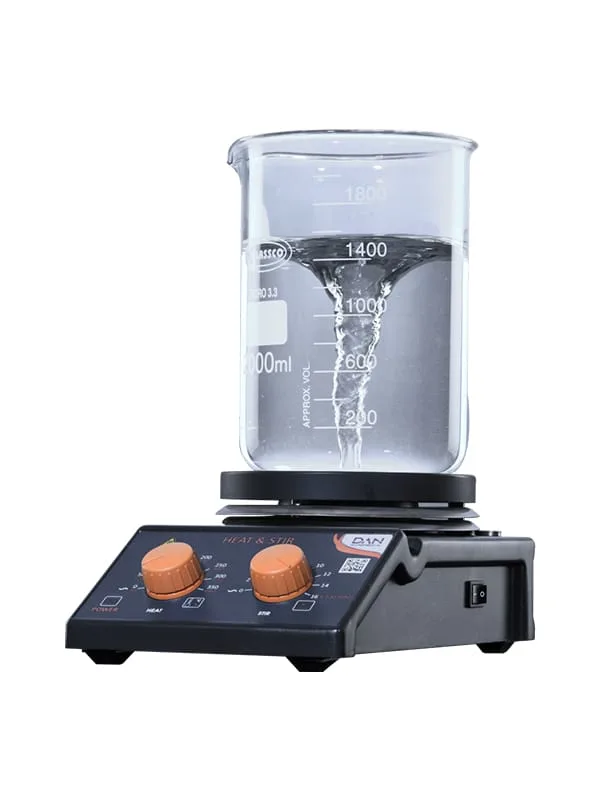

Magnetic Stirrer with Hotplate, SS Steel Top – Analog 230v, 50-1600RPM
,

Magnetic Stirrer with Hotplate, SS Steel Top – Analog

Availability:

In stock

₹30,000.00

STAINLESS STEEL TOP

Magnetic Stirrer with Hotplate – Analog

  • PU Coated Aluminium Alloy Moulded Construction
  • Easy temperature & Stir controls
  • Installed with Safety PT sensor for fail safe operation.
  • Hot top indicator for temperatures above 50°C.
  • Large top plate to assist beakers upto 2000 ml.
  • High magnetic strength.
  • Electronic variable speed control with Knob.
  • Knob for regulating variable temperature.
  • Heat reach Indicator, To ensure you correct temperature of plate surface.
  • Stirring & temperature indicator
  • Error indicators for heat & Stir function inbuilt trouble shoot

Item Code:710.AG.01, V:230, Hz:50, W:650, Top Plate: SS Ceramic Coated | Item Code:610.AG.01, V:230, Hz:50, W:650, Top Plate: Alluminium Ceramic Coated

Item Code:710.DNAG.01, V:230, Hz:50, W:650, Top Plate: SS Ceramic Coated | Item Code:610.DNAG.01, V:230, Hz:50, W:650, Top Plate: Alluminium Ceramic Coated

Item Code V Hz W Top Plate
QtyEnquiry
710.DNAG.0123050650 SS Ceramic Coated
610.DNAG.0123050650 Alluminium Ceramic Coated

Technical Specification:

Heating Mantle Material: Stainless Steel 304 Grade with Ceramic Coating/Aluminum Alloy with Ceramic Coating
Dimension of heang plate: Ø145 (For 610DNDG.01) | Ø150 (For 710DNAG.01)
Speed range: 50-1600 RPM
Maximum srring bar Length: Can use upto 80 mm bar (at lower speed)
Temperature Range: Ambient to 350°C approx
Dimensions of hot plate body: 273x160x102mm
Weight of body: 3.0 kgs
Permissible ambient Temperature: 5- 40 °C
Permissible relave moisture: 80%
Weight of Capacity: 20 Ltr
IP Class: 22

Included Accessory:

Cat. No.Accessories
850.800.02Magnetic Stirring bar 35 mm x 8 mm
