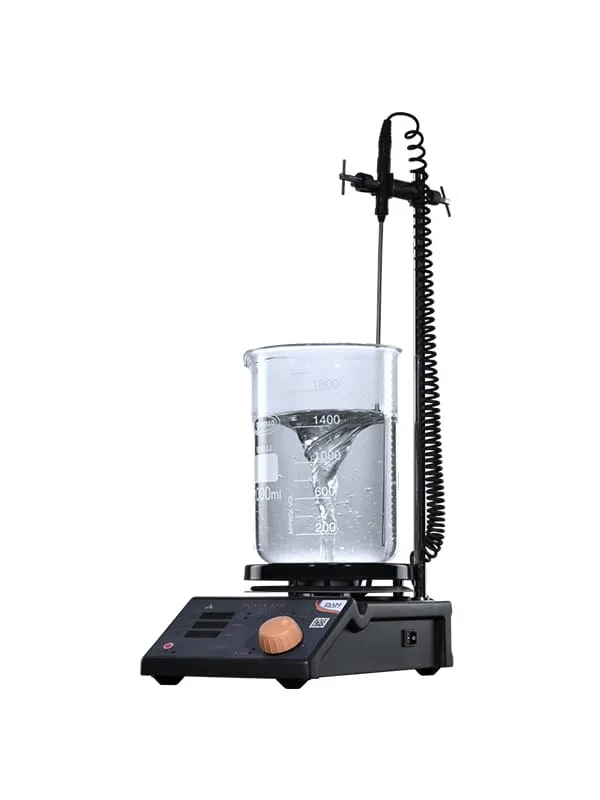

Magnetic Stirrer with Hotplate – Digital, Ceramic Coated Stainless Steel Top


In stock


Model No.:900.DNDG.01, V:230, Hz:50, W:230, Top Plate: SS Ceramic Coated

Model No. V Hz W Top Plate
Qty Enquiry
900.DNDG.0123050230 SS Ceramic Coated

Magnetic Stirrer with Hotplate – Digital :

  • Aluminium Moulded Body
  • Ceramic coated top plate, chemically resistant and scratch resistant.
  • Even heat distribution.
  • Large top plate to assist beakers upto 2000 ml.
  • Single multi-turn intelligent knob Operation.
  • High magnetic strength.
  • Digital set up with independent displays.
  • Selection of Celsius or Fahrenheit.
  • Selection of hot plate or probe temperature control.
  • Settable safety cut-off for maximum temperature limit for top plate or probe.
  • Installed with double PT sensors for safety & fail safe operating mechanism.
  • Only with Battery
  • Inclusive PT 100 temperature sensors probe.
  • Digital setup of RPM with independent display.
  • Digital setup of time with independent display.
  • Count-up indication of minutes and hours
  • Audible alarm at time cycle end for safety and ease of unsupervised operation.
  • Error code display for failures.

Technical Specification:

Heang Mantle Material : Stainless Steel / Ceramic Coated
Dimension of heang plate : Ø 150mm
Three display windows for : Temperature, RPM and Time
Speed Range : 50 -1500 RPM
Maximum stirring bar length : Can use upto 80mm bar (at lower speed)
Temperature range : Ambient to 350°C
Adjustable Safety cut off : 50-400°C
Control accuracy of PT100 : ±1k
Dimensions of hot plate : 273x160x102mm
Weight of body
: 3.3 Kgs
Permissible ambient temperature
: 5 – 40°C
Permissible relative moisture
: 80%
RS 232 interface
: Yes (For Programming)
IP Class
: 32

Included Accessory:

Cat. No. Accessories
850.800.01 Rod Stainless Steel length 400 mm, Ø 12 mm
850.800.02 Magnetic Stirring bar 35 mm x 9 mm
850.800.03 Moulded PT 100 sensor probe
850.800.04 Boss Head

Temp Control RPM Plate Size Vessel Capacity Plate Material
upto 350° C 50-1500 RPM 150mmØ upto 2L Beakers SS 304
