Kjeldahl Instruments

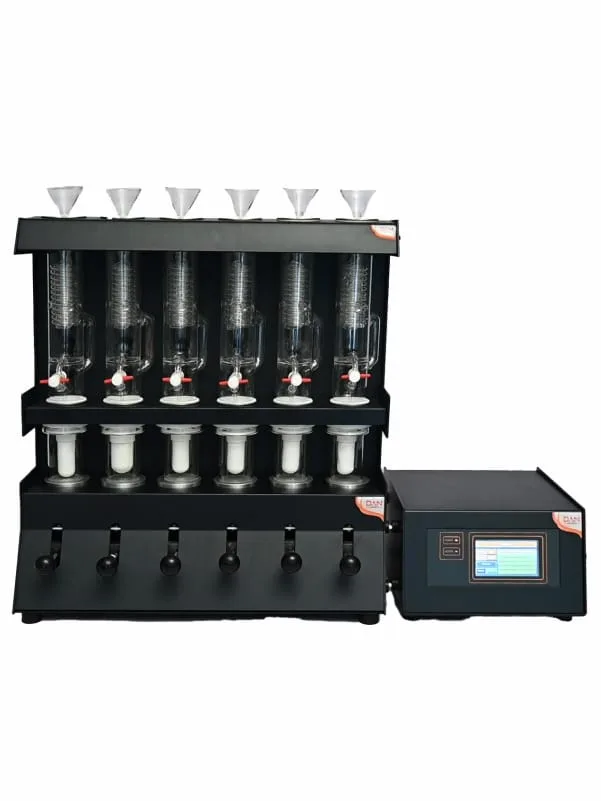

Automatic Solvent Extraction System
Available in store
Safety Features
- Standalone housing for Temperature controller to protect electronics from solvent area & heat zone.
- PC chart software performs Live graphical representation of time/temperature gradient on PC Connectivity
- Auto Alarm for recovery phase
- Auto power off mode on completion of extraction.
- Independent loading of sample with individual mechanical controls.
- Inbuilt safety features like auto error indication, auto over temperature protection and auto sensor break protection.
- Cold water line for condensation of solvent with silicon hose interconnection for condensor
|
|---|
Technical Specification:
| MODEL | DAN-6T-02 |
| Description | Automatic PC Compatible Auto sequencing Regular Six Place Solvent Extraction System |
| No. of Positions | Six Samples |
| Sample Size | 0.1 to 8 gms (depending on the type of sample) |
| Temperature Control Range | 35°C (Ambient) to 300°C |
| Digital Timer | Range : 0-99.59 hrs (Settable in hrs, min and seconds), Digital display of set time and actual time (1-5999 minutes) , Modes of operation: heater cut off mode & alarm mode |
| Temperature Accuracy / Precision | ± 0.5° C |
| Ramp & Hold | Integrated Auto Sequencing programs with 12 desirable sequence ramp / steps of time and temp. domain for each programme. |
| Presets | Select able Programs(Customizable): Integrated Auto Sequencing Features with 30 intelligent memory programs |
| Heater Source | Casted Aluminium Alloy Heaters |
| PID Control | Fuzzy logic Microprocessor based PID Controller with Auto tuning facility. |
| Temperature Setting | Feather touch membrane keys |
| PC & Printer Connectivity | Direct USB port for PC/Laptop connectivity Intelligent Software for PC compatibility for 2 way Bidirectional communication |
| Display | Bright Digital two line Alphanumeric LCD Digital Display of time and temperature |
| Extraction Thimbles | * Thick Nitrocellulose thimble (f25mm X 80mm) – 1 Box of 25 Nos. * Highly versatile to accommodate 2 sizes of Thimbles. Optional Macro Thimbles of size (33 mm dia x 80mm L) compatible in the system. |
| Power Consumption | 2000 Watts. |
Related products
- Kjeldahl Instruments
Water Bath Cum Water Bath Shaker (touch Screen Version)
Safety Features
- Water bath and shaker in a single system.
- Selection of mode in the touch screen
- Absolutely noiseless operation.
- Programmable system
- Removable tray
- Flexible Polyproplene Rubber Clamps reinforced with inner metallic cup for sturdy & rugged use for intact grip to perfectly hold the flask
SKU: 1855.DNEU.01 - Kjeldahl Instruments
Hot Air Oven Cum Incubator
- Use as a Incubator or Hot air oven
- Forced air circulation by convection
- Shelf Height adjustable to 7 levels
- Curved edges at the four corners for easy cleaning.
- See Through window for viewing samples
- Automatic cut off of Heater and blower when the door is opened.
- Sturdy SS handle with chrome finish
- Additional port for cross checking the temperature of the chamber.
- Over voltage protection
SKU: 3900.DNEU.03 - Kjeldahl Instruments
ALL GLASS WATER DISTILLATION (AUTOMATIC)
This has been designed for better and accurate control of the distillation unit. It has been incorporated with advanced microcontroller based electronic circuitry, which gives and easy user machine interaction.
The alpha numeric LCD which has been used shows all messages that correspond to the running of the machine.- Environment friendly & suitability
- One Touch Use, Fully Automatic ,
- Intelligent, dual stage all glass type
- Fully automatic control save energy & money– By setting the required output volume in litters. Aer completion of the process heater is turned off and the cooling water inlet is closed automatically.
- Boiler empty detection intelligence built in– when the water level inside the boiler drops below the heater, boiler empty condition is detected.
- Gate Valve to one side – Conserves cooling water wastage in case of power failure
- Flow switch – In built safety feature for the equipment unit shut off in case of cooling water failure. When the inlet water flow to the unit is low, this error is displayed with buzzer indication. The process in paused until the inlet flow is resumed.
- Easy to read Alpha numeric LCD and keypad for all settings and messages that correspond to the running of the machine.
- Auto cleaning detection
- Probe error detection
- So Calibration of output volume to compensate seasonal temperature and flow rate changes
- Manual overriding flow sensor and Gate (solenoid) valve
- Serviceability Replaceable Silica sheathed (Quartz) Heater
- Safety of user & instrument against wattage/power variation
SKU: DN.WD.01/DN.WD.02
