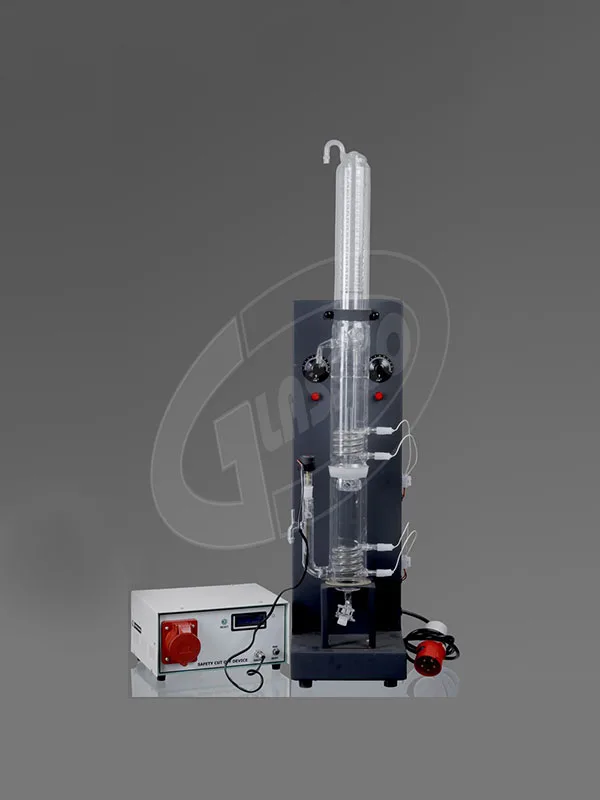

All Quartz, Double Stage, Water Distillation Unit, Vertical Model, including Safety cutoff


In stock


Item Code:GLDD15AQ , Output Capacity Ltr / Hr:1.5, Pack of:1 | Item Code:GLDD25AQ , Output Capacity Ltr / Hr:2.5, Pack of:1 | Item Code:GLDD40AQ , Output Capacity Ltr / Hr:4, Pack of:1 | Item Code:GLDD50AQ , Output Capacity Ltr / Hr:5, Pack of:1

Item Code Output Capacity Ltr / Hr Pack of
Qty Enquiry
GLDD25AQ 2.51
GLDD15AQ 1.51

Unit has been designed keeping in view customer requirements and easy serviceability of the equipment.

Unit consists of:

  • Lower boiler with inbuilt heater enclosed in a quartz boiler with a cup on top.
  • Demountable upper boiler with built in quartz coil and condensing unit mounted on the boiler with the help of ball and socket joint
  • Double walled condenser ensures separate condensation of vapours coming from the two boilers using a single cooling circuit
  • Unit mounted on a specially designed metal stand and is also provided with automatic safety Control Unit

Double Distillate Quality:

Parameters Values
Specific Conductivity 0.1 us/cm
Biological Activity (distillate quality) Pyrogen Free
Organic Matter NIL
Total Solids 0.1 mg/ltr

* We recommend a Quartz Reservoir For storage of High purity water. * All Parameters are under standard test conditions

Spare Parts for above:

Item Code Output Capacity ltr./Hr Description Pack Of Price/Piece
GLDD-15AQ-PB 1.5 Quartz Primary Boiler 1 23700
GLDD-25AQ-PB 2.5 Quartz Primary Boiler 1 29500
GLDD-40AQ-PB 4 Quartz Primary Boiler 1 45560
GLDD-50AQ-PB 5 Quartz Primary Boiler 1 46560
GLDD-15AQ-SC 1.5 Quartz Secondary Boiler 1 90500
GLDD-25AQ-SC 2.5 Quartz Secondary Boiler 1 125800
GLDD-40AQ-SC 4 Quartz Secondary Boiler 1 243500
GLDD-50AQ-SC 5 Quartz Secondary Boiler 1 249500
GLSI-SCU-15AQ 1.5 Safety Cut-off Device 1 13200
GLSI-SCU-25AQ 2.5 Safety Cut-off Device 1 13200
GLSI-SCU-40AQ 4 Safety Cut-off Device 1 24000
GLSI-SCU-50AQ 5 Safety Cut-off Device 1 24000
