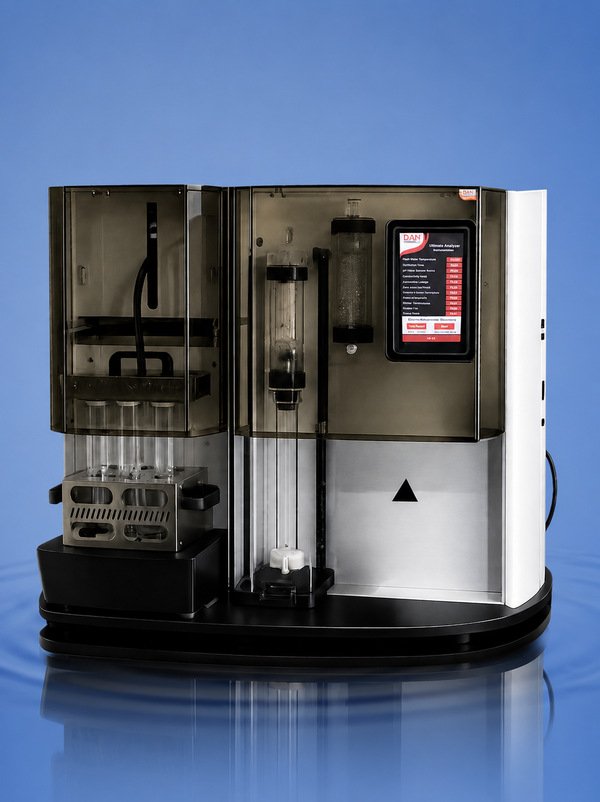

Advanced 2-in-1 Nitrogen Analysis System
,

Advanced 2-in-1 Nitrogen Analysis System

₹400,000.00

A compact 2-in-1 nitrogen analysis platform integrating Digestion and Distillation for Kjeldahl protein determination, Non-Protein Nitrogen (NPN), volatile compounds, and related analysis.

Item Code Power Hz
QtyEnquiry
DAN.NACOM.01R220–240 V AC/20A50/60
Analysis time4 Min. and Above
Measuring range0.04 -220 mgN
Sample Size0.1 To 5g (depending on Sample Type)
Reproducibility (RSD)≤1%
Recovery≥99.5%
Sodium hydroxide additionAutomatic
Water additionAutomatic
Boric acid additionAutomatic
Distillation residues removalAutomatic
Selectable distillation timeNot necessary
Steam flow regulation10-100%
Water consumption0.5 L/min at 15°C; 1 L/min at 30°C
Distillation seriesYes
User managementYes
Programs60 Customizable
21 CFR PART 11 ComplianceYes (Optional)
ConnectivityUSB/WiFi (Labs-Connectâ„¢)
Power input4.0 kW
Dimensions (W×H×D)785 × 910 × 490 mm
Weight91 Kg for IWS Model
Capacity6 × 300 ml, 42 mm OD Kjeldahl tubes
Temperature RangeAmbient to 450°C
Temperature Accuracy±1 °C
Temperature ControlPID-based point and curve control
Auto ScrubberAutomatic drain and refill after each digestion cycle
Analysis Scope0.1 – 240 mg N
Precision (RSD)≤0.5%
Recovery99%
Cooling SystemHigh-efficiency coil condenser
Cooling Water Consumption1.2 – 3.0 L/min
Safety FeaturesOver-temperature and dry-run protection
Accuracy±0.1%
