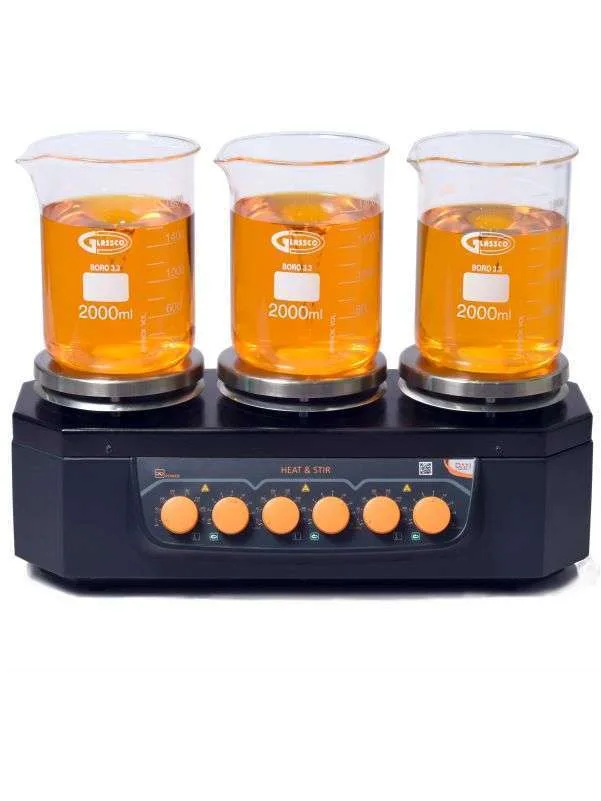

Buy Now High Quality 3 Station Magnetic Stirrer With Hotplate

Buy Now High Quality Analytical-Benchtop-Instruments Magnetic-Strirrer, Instruments

Buy Now High Quality 3 Station Magnetic Stirrer With Hotplate

Availability:

In stock

₹30,000.00

Upgraded model of 713.DNAG.01

Model No.

V

Hz

W

Top Plate

Qty	Enquiry

716.DNAG.01

230

50

(450x3) 1350

SS Ceramic coated

Specifications

Magnetic Stirrer with Hotplate – Digital :

Three independently controlled stirring/heating positions.
Powerful magnets for strong magnetic coupling
Easy temperature & Stir controls.
Installed with Safety PT sensor for fail safe operation.
LED hot top indicator for temperatures above 50°C for each station.
Electronic variable speed control with Knob for display
Knob for regulating variable temperature
Heat reach Indicator, To ensure you correct temperature of plate surface.
Stirring Indicator
LED error code displays & safety for heat & Stir function inbuilt trouble shoot

Technical Specification:

Heang Mantle Material	: Stainless Steel Ceramic Coated
Dimension of heang plate	: Ø 150mm
Volume cap.	: 20 L each station
Speed Range	: 1600 RPM
Stirring position	: 3
Maximum stirring range	: Can use upto 80mm bar Lower speed
Maximum plate temperature	: 350°C
Overall dimensions (w x d x h), mm	: 505 x 246 x 195 (LxWxH)
Plate dimensions, mm	: 504 x 175 x 30 (LxWxH)
Net weight, kg	: 7.0 kg (Approx.)
Permissible ambient temperature	: 5 – 40°C
Permissible relative moisture	: 80%
IP Class	: 21

Heat	RPM	HEAT/STIR	CELSIUS TO	Temperature
1350W	0-1600 RPM	SELECTION	FAHRENHEIT	Upto 350 °C
