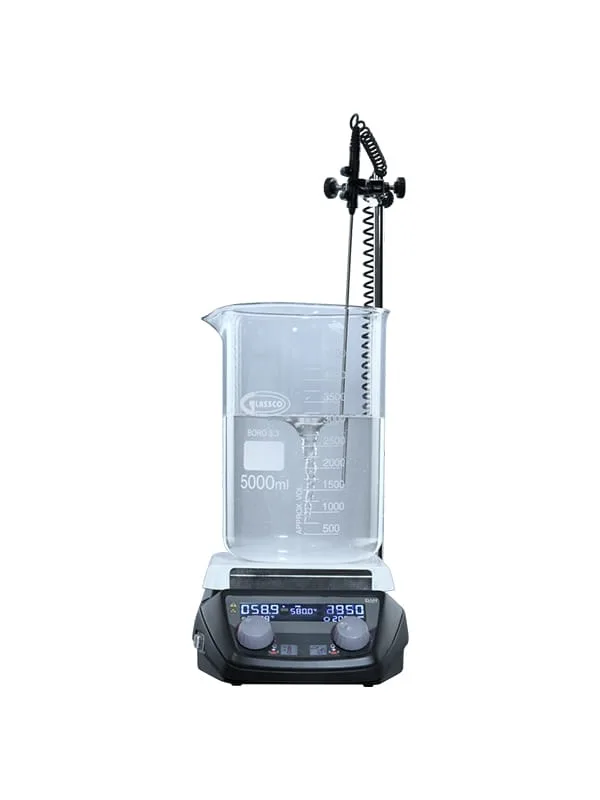

MAGNETIC STIRRER WITH HOTPLATE

Upgraded model of 713.DNAG.01

Model No.:713.AG.01, V:230, Hz:50, W:(450×3) 1350, Top Plate: SS Ceramic coated

Model No.:713.DNAG.01, V:230, Hz:50, W:(450×3) 1350, Top Plate: SS Ceramic coated

• Powerful 1300 W heater, biggest in class, gives results quickly.
• Supplied with Accessories, Probe based thermal control best for direct media temperature control, pH electrode for pH based alarms.
• 7X7 inch Glass Cera top supports large vessels upto 5 Ltr.
• CERA click quick removal of top plate.
• WIFI variant adds value labs connect useful for private non pharma labs.

RELIABILITY

• Hot Top warning, UL/CSA certified, very safe for users.
• Precise, microcontroller-based temperature control in both C & F
• Indicates errors automatically in Display.
• Interface easy to use and rugged against spillages. Patented spill away design

DURABILITY

• PU coated body, made from AL Alloy gives infinite rust/damage free life.
• Can carry 20 KG weight. Rugged Motor withstands all voltage fluctuations.

SERVICEABILITY & SUPPORT

• Patented CeraClick system for quick service.
• Made in India… Tech support and Spares readily supported.
• Low down times. Value for investment

Technical Specifications:

Heating Plate material : Glass Ceramic white square plate
Dimension of heating plate : 180 mm x 180 mm
Two display windows for : Temperature and RPM
Speed Range : > 2000 RPM
Heat Output : 1300 W
Temperature range : Ambient to 550°
Adjustable safety cut off : 580°C
Control accuracy of sensor : ± 1k
Weight of body : 5.2 kgs
Permissible ambient temperature : 5 – 40°C
Permissible relative moisture : 80%
USB Port : Yes
Frequency : 50/60 Hz
Voltage : 230/115 Volts
Dimensions of hot plate body : 378x220x103
IP Class : 21
