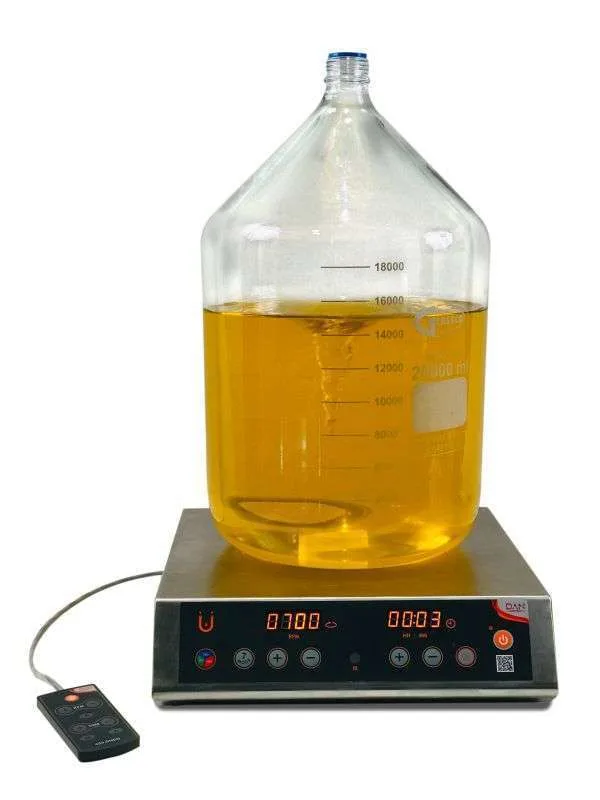

High Volume Large Digital Magnetic Stirrer
Availability:
In stock
Available in store
- Large display allow viewing from distance
- Powerful magnet stirrer large volume
- Acceleration adjust for volume & viscosity combination
- Auto power ‘ON’ possible
- Detachable wire & wireless remote add value for placing under large vessel
- SS 304 construction
- Large surface to assist large vessels upto 20, 30 40 & 50L
- High magnetic strength
- Electronic variable speed control
- Independent display for RPM & Time
- Choice of 7 modes of rotation
- Power adjust feature
- Optional remote
| Item Code | Volt | Hz | Watts | Cap (Ltr.) | Top Plate | Price |
|---|---|---|---|---|---|---|
| 420.DNDG.01 | 240 | 50/60 | 50 | 20 | SS 304 Grade | On Request |
| 440.DNDG.01 | 240 | 50/60 | 50 | 40 | SS 304 Grade | On Request |
| 450.DNDG.01 | 240 | 50/60 | 50 | 50 | SS 304 Grade | On Request |
| 4100.DNDG.01 | 240 | 50/60 | 50 | 100 | SS 304 Grade | On Request |
| 4200.DNDG.01 | 240 | 50/60 | 50 | 200 | SS 304 Grade | On Request |
|
|---|
Technical Specification:
| Speed Range | : 100 – 2000 rpm |
| Timer Range | : 0:01 to 99:59 (HH:MM) |
| Stirring Power Mode | : 50%,75%,100% |
| Acceleration Mode | : yes |
| Timer bypass | : Yes |
| Display type | : Led segment |
| Stirring power (max.) | : 50W |
| Operating voltage | : 24VDC |
| Power supply | : 100-240 VAC / 50-60 Hz / 2A |
| Dimensions (WxDxH) | : 370x415x115mm |
| Weight Approx. | : 11Kg |
| Material Housing | : Stainless steel-304 |
| Permitted operation conditions | : 5 to 40 °C (at 80% humidity) |
| Protection category | : IP20 |
