Magnetic | Model No.:716.DNDG.01, Volt:230, Hz:50, Watts:(450×3)1350, Top Plate:SS |
---|
Instruments

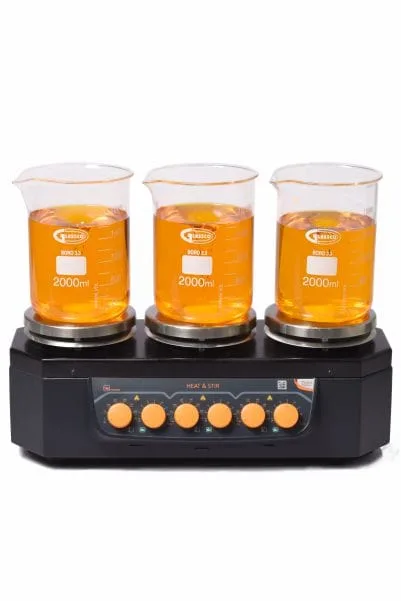

3 STATION MAGNETIC STIRRER WITH HOTPLATE
- PU Coated Mild Steel construction
- Three independently controlled stirring/heating positions.
- Powerful magnets for strong magnetic coupling.
- Easy temperature & Stir controls.
- Installed with Safety PT sensor for fail safe operation.
- LED hot top indicator for temperatures above 50°C for each station.
- Electronic variable speed control with Knob for display.
- Knob for regulating variable temperature.
- Heat reach Indicator, To ensure you correct temperature of plate surface.
- Stirring Indicator
- LED error code displays & safety for heat & Stir function inbuilt trouble shoot.
Technical Specification:
Heating plate material : Stainless Steel
Dimension of heating plate : 150 Ø RPM
Volume cap. : 2000ml each station
Speed range : 1600 RPM
Stirring position : 3
Maximum stirring range : Can use upto 80mm bar Lower speed
Maximum plate temperature : 350 °C
Overall dimensions (mm) : 505 x 246 x 195 (LxWxH)
Plate dimensions (mm) : 504 x 175 x 30 (LxWxH)
Net weight (kg) : 7.0 kg (Approx.)
Permissible ambient temp. : 5-40 °C
Permissible relative humidity : 80%
IP Class : 21
